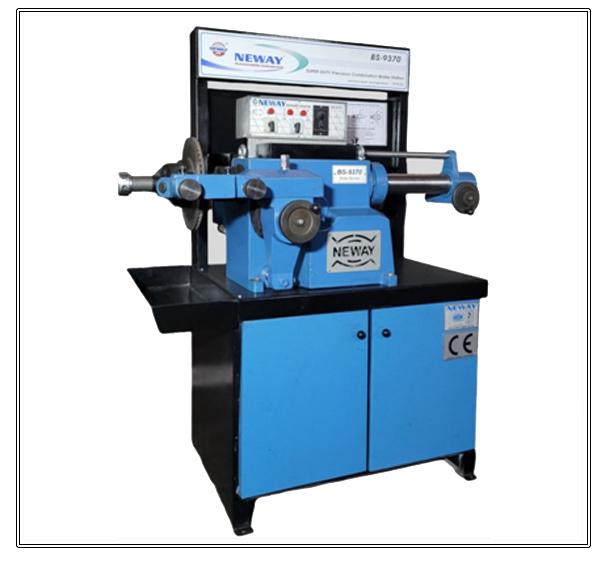

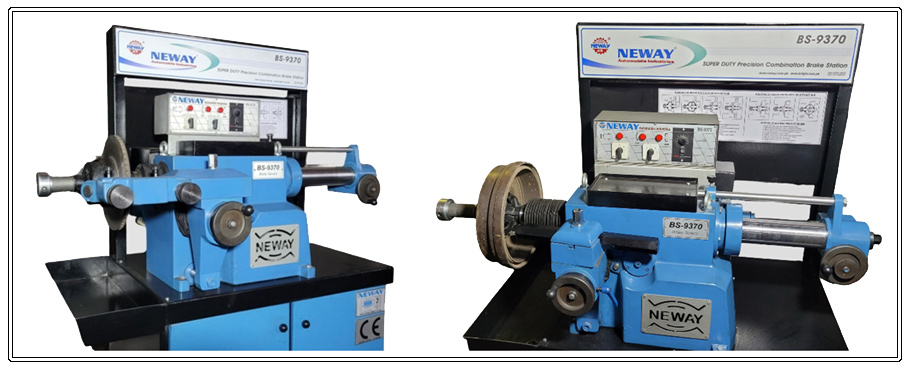

BS-9370
Super Duty Precision Combination Brake Station

This automotive equipment is primerily used for the remachining of outworn brake drums and discs to achieve flawless fresh surface . Easy to use, durable and accurate yet affordable. Its capacity makes it useful for both large and medium engine overhauling workshops. The economical BS-9370 is ideal for the small brake service shop for its space saving features.

The basic components of the machine are of engineering Cast iron and other alloys of high resistance to wear and vibration. The hard chrome plated and ground sliding Spindles are incorporated for a smooth sliding mechanism.

Main arbor supported by precision bushes is powered by the sealed oil-bath gear box. Multiple speeds of arbor along with electronic controlled variable feed speeds for both drum and discs are available. The quality of surface finish while re-machining is achieved with Titanium coated carbide cutting inserts supplied with the machine.

BS-9370 is a precision machine tool, manufactured of the best material obtainable and to the highest degree of accuracy. Every part of the machine has been checked during its manufacture.

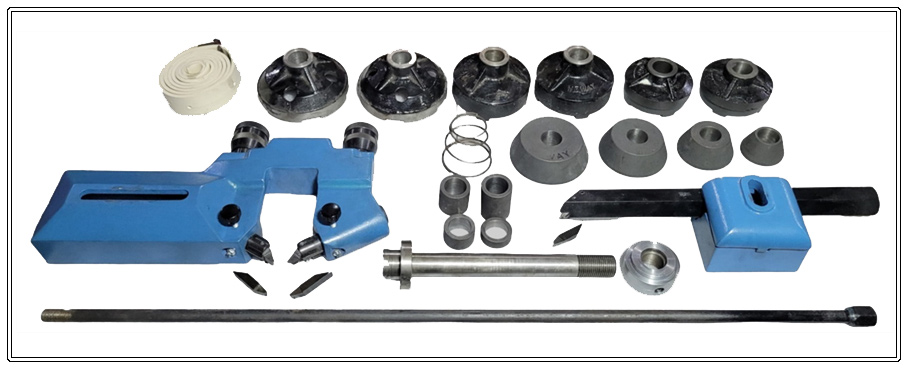

STANDARD EQUIPMENTS

• BS9010 Steel cabinet complete with tool storage and Chip Tray.
• BS9010 Electrical Control Panel with 1 + 2 motors.
• BS9020 Electric lamp.
• BS9030 Silencer/dampener band for drums.
• BS9035 Disc aligner with R/H & L/H Cutting tool holders and micrometer dials.
• BS9040 Cutting tool for drum turning with tool post.
• BS9050 Pair of Face Plates (cups) dia 140 mm.
• BS9060 Pair of Face Plates (cups) dia 118 mm.
• BS9070 Pair of Face Plates (cups) dia 102 mm.
• BS9080 Job centring Cones (4 pcs) dia 95, 75, 57, 38 mm.
• BS9090 Self aligning arbor locking nut.
• BS9100 Spacers (4 pcs) length 55, 40, 25, 15 mm.
• BS9200 Cutting tools L/H & R/H for disc aligner.

EXTRA EQUIPMENTS

• BSX901 Cutting tool bits (pack of 10)
• BSX902 Micrometer for Discs rang 0 to 50mm
• BSX903 Micrometer for Drums rang 150 to 350mm
• BSX904
• BSX905
