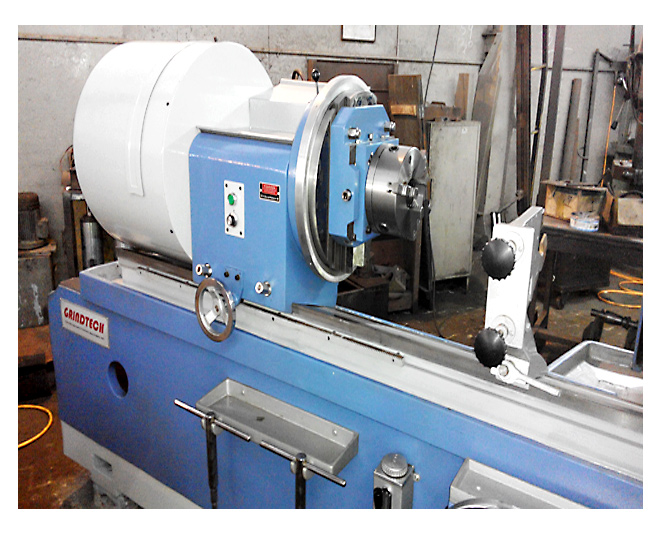

Crankshaft Regrinding Machine

(Complete with Standard and Optional Equipments)




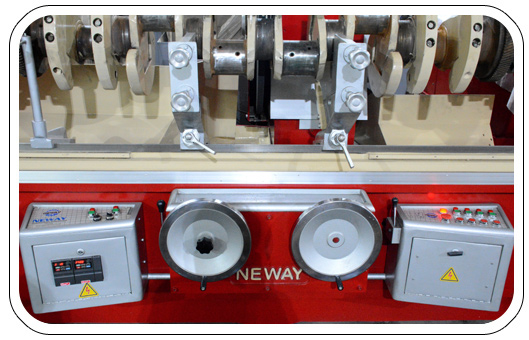

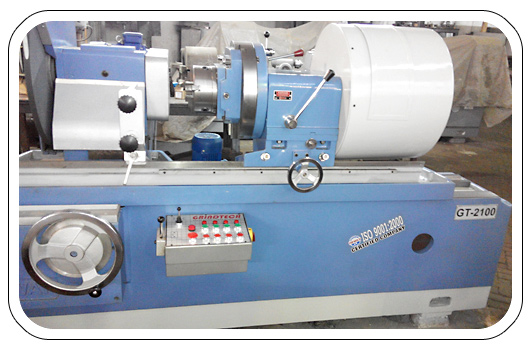

CRANKSHAFT GRINDING MACHINE FH-SERIES

MAIN CONSTRUCTION FEATURES:


 SPECIFICATIONS:

DANY-01

FH-400

FH-500

FH-600

FH-700

FH-800

FH-900
 Max. Distance between chucks-----------mm 760 1070 1500 1800 2100 2440 2745
 Swing over table-----------mm 390 456 500 500 600 850 850
 Offset of centers (Stroke)-----------mm 70 100 120 120 180 210 210
 Max. Weight of crankshaft, approx.---------kg 65 100 130 150 225 450 450
 Diameter of 3-Jaw Chucks mounted----mm 130 165 165 165 200 250 250
 Workhead rotation speeds----------RPM 65-120 37-76 54-90 54-90 30-85 15-60 15-60
 Diameter of grinding wheel --------mm 510 610 650 650 750 910 910
 Wheel spindle electric motor-----hp. 3 3 5 5 7.5 10 10
 Workhead electric motor--------hp. 1 1 1 1 2 3 3
 Hydraulic pump electric motor------hp. 1 1 1 1 1 1 1
 Table Rapid traverse electric motor----hp. - - - - 1 1 1
 Coolant pump electric motor------hp. 0.3 0.3 0.3 0.3 0.3 0.3 0.3
 Approx. net machine weight -----kg. 2000 2465 4122 4220 4830 6375 6470
 Approx. length of machine, overall -----mm 2200 2670 4115 4115 4530 5060 5060
 Approx. width of machine, overall -----mm 1270 1450 1650 1650 1900 2100 2100
 Approx. height of machine, overall -----mm 1295 1400 1550 1700 1700 2050 2050


STANDARD EQUIPMENTS

EXTRA EQUIPMENTS

Electric motors and complete control panel
Coolant tank and electric pump complete

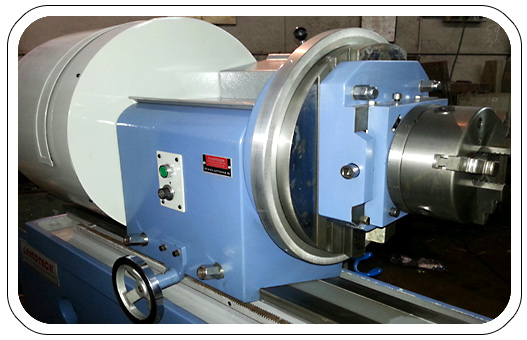

Two 3-Jaw chucks mounted on machine

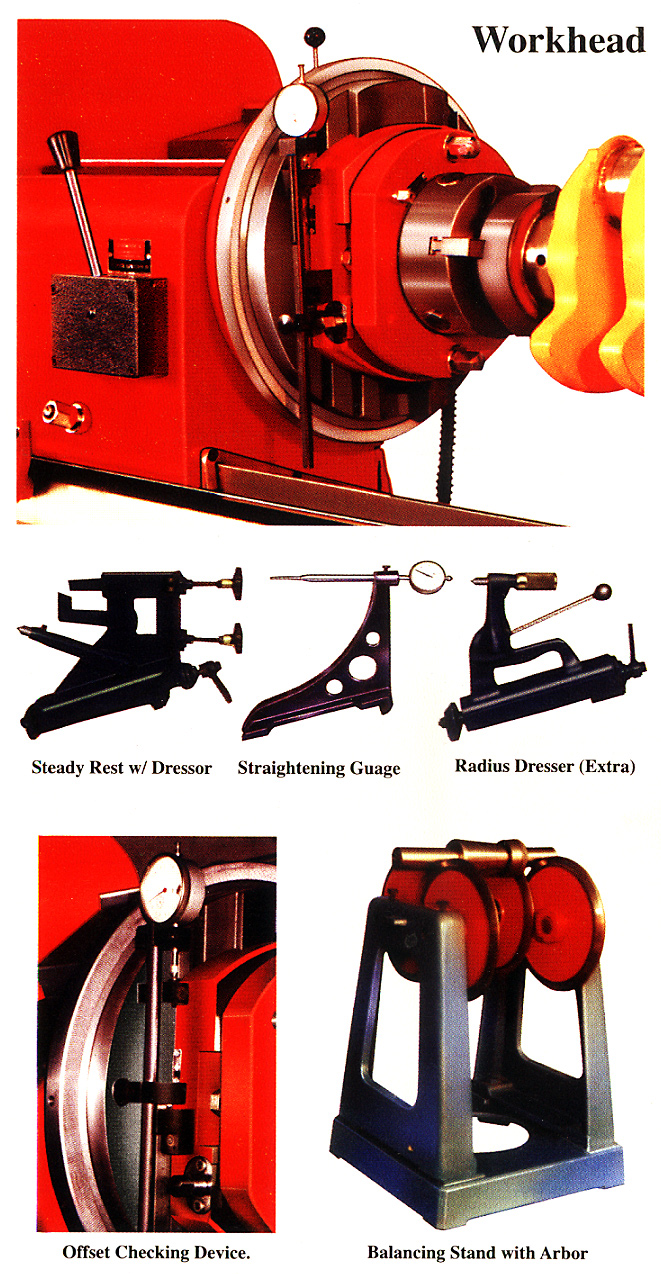

One straightening gauge with dial indicator
One wheel coupling mounted on grinding wheel
Wheel balancing stand with arbor
G.Wheel diamond dressor mounted on steady rest
Two steady rests and splash guards.

Spare Wheel coupling (flanges)
Wheel radius dresser with diamond nib
Automatic continuous sizing gauge
Extra grinding wheels, specify thickness
Diamond nib for G.Wheel dressing Rapid for table.
Feed electric for table.
Aluminum ring for chuck.
Centers Offset checking device.

All data, weight and dimensions are not binding and can be modified without prior notice.

Please specify color and voltage of your choice. Extra  equipments available at extra cost.


Please specify colour and voltage of your choice along with the extra equipments at the time of placing an order.
All data, weight and dimensions are not fix and can be modified without prior notice.
