(Complete with Standard and Optional Equipments)
|
SURFACE GRINDING MACHINE |
|

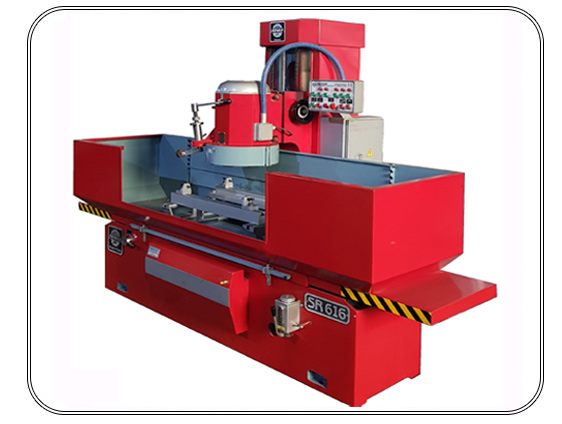

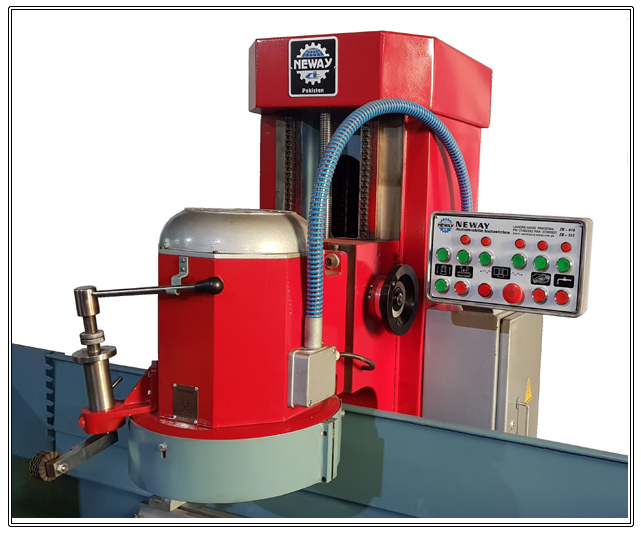

NEWAY surface grinding machines SR-313/SR-616 are most profitably used for regrinding/milling small and large cylinder heads and blocks. Simple and flexible but, above all, featured with high production capacity, they meet the requirement of both small and large shops. SR-313 features only the grinding facility including the high speed segmental wheel and four different fast traverse speeds. SR-616 includes both the grinding and milling operations and conversion from grinding to milling is a matter of few minutes. The milling attachment is mounted on the segmental holder plate without removing it while saving the precious time. In this mode of operation, different traverse feeds are available to achieve fine surface finish on Aluminum parts. |
|
TECHNICAL DATA |
||
|
Max. Working length |
1340 | mm |
|
Max. grinding width |
380 | mm |
|
Max. milling width |
295 | mm |
|
Max. height of work piece |
950 | mm |
|
Vertical travel |
300 | mm |
|
Work head fine adjustment |
0.0025 | mm |
|
Work area |
620 X 1370 | mm |
|
Work head motor |
5.0 | Kw |
|
Traverse motor |
1.0 | Kw |
|
vertical slide motor |
0.75 | Kw |
|
Coolant motor |
0.38 | Kw |
|
Overall Length approx. |
2300 | mm |
|
Height approx. |
1800 | mm |
|
Width approx. |
1000 | mm |
|
Approximate Mass. |
2340 | Kg |
|

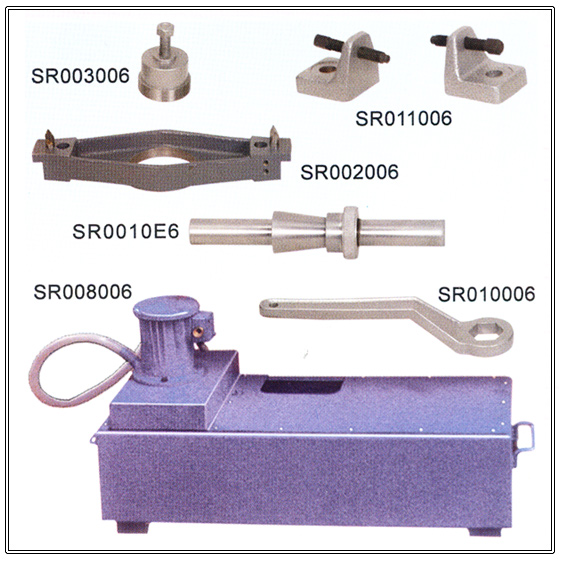

STANDARD EQUIPMENT |
|
|
SR001006 |
Segmental Holder plate complete with balancing weights. |
|
SR002006 |
Milling attachment with cutting tools (for SR-616). |
|
SR003006 |
Puller for Segmental Holder plate. |
|
SR004006 |
Wheel Dresser with toothed wheels. |
|
SR005006 |
Parallel supports 2 Nos. 65 mm X 760 mm. |
|
SR006006 |
Parallel supports 2 Nos. 155 mm X 610 mm. |
|
SR007006 |
Parallel supports 2 Nos. 230 mm X 610 mm. |
|
SR008006 |
Cooling system with power pump and coolant tank. |
|
SR009006 |
Set of lock screws, nuts and clamps. |
|
SR010006 |
Spanner for Segmental Holder plate. |
|
SR011006 |
Clamps 4 Nos. with bolts. |
|
SR012006 |
Splash guards. |
|
EXTRA EQUIPMENT |
|
|
SR0010E6 |
Arbor for static balancer. |
|
SR0020E6 |
Surface straightness checking attachment with dial indicator |
|
SR0030E6 |
Extra set of grinding segments, 8 Pieces. |
|
SR0040E6 |
Roll-over fixture for V-Block set up. |
Please specify colour and voltage of your choice along with the extra equipments at the time of placing an order.
All data, weight and dimensions are not fix and can be modified without prior notice.
