(Complete with Standard and Optional Equipments)

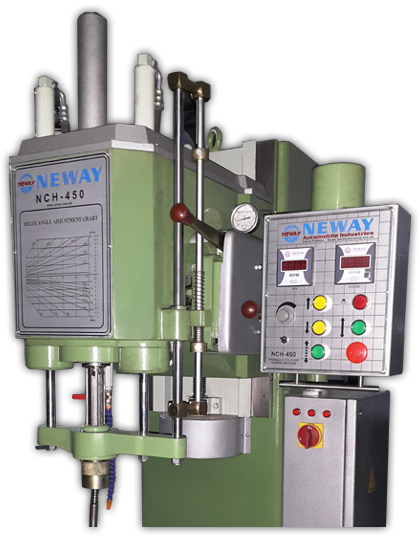

The NCH-450 with alternate automatic movement allows quick Honing with the best possible finish on the Cylinder surface. It produces cross-hatch finish to finest tolerance truly round and straight for quick ring seating and long engine life.
The alternate automatic movement is obtained through heavy duty hydraulic system to eliminate maintenance time. Honer stroke is adjustable in depth and speed, with manual over ride, fast and easy cylinder centering is done through displacement of table. Digital meters are placed on the control panel for all the operations.
|
TECHNICAL DATA |
||
|
Honing Diameter |
45 to 180 |
mm |
|
Max. Honing Depth |
500 |
mm |
|
Honer Travel (Stroke) |
25 to 400 |
mm |
|
Honer Travel Speed (Stroke) |
5 to 18 |
Strokes / Min |
|
Spindle rotation speed |
120 - 360 |
RPM |
|
Distance, Spindle Axis to column |
350 |
mm |
|
Spindle Motor |
1400 RPM |
2Hp. |
|
Coolant Motor |
2800 RPM |
0.3Hp. |
|
Max. Height of work piece on table |
800 |
mm |
|
Table work area |
1280 X 330 |
mm |
|
Table travel |
900 |
mm |
|
Dimensions |
Aprox. |
|
|
Length |
1900 |
mm |
|
Width |
1350 |
mm |
|
Height |
2000 |
mm |
|
Weight |
990 |
Kg |
|
STANDARD EQUIPMENTS |
|
Inverter electronic control system |
|
Pair, Parallel Engine Rests, Height 90mm |
|
Set of Clamping Plates |
|
Set of Clamps with Accessories |
|
Coolant System with Electric Pump |
|
Set of Service Tools |
|
Splash Guards |
|
STANDARD EQUIPMENTS |
|||
|
MC-601 |
Honer, Capacity |
45-65 | mm |
|
MC-602 |
Honer, Capacity |
60-90 | mm |
|
MC-603 |
Honer, Capacity |
85-115 | mm |
|
MC-604 |
Honer, Capacity |
80-180 | mm |
|
MC-605 |
Set of Spare Stones for above Honer |
||
|
MC-606 |

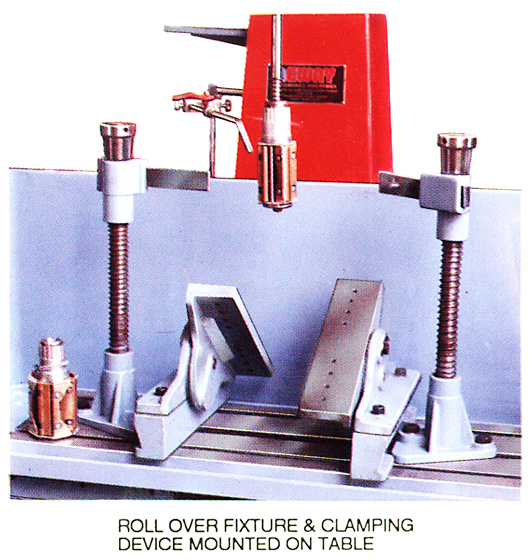

Set of Roll-over Fixture for V-Type Cylinder Block |
||
Please specify colour and voltage of your choice along with the extra equipments at the time of placing an order.
All data, weight and dimensions are not fix and can be modified without prior notice.
